Petzl Installations and Interior Uses (Pack of 20), COEUR BOLT STEEL Anchor for Non Permanent, P36BA 10 – Next Generation UK
£66.95 (Incl VAT)
Add to compareDescription
The COEUR BOLT STEEL is a standard steel anchor composed of a COEUR STEEL hanger, a bolt and a nut. It is designed for interior uses or non-permanent installations. It is available in 10 and 12 mm diameters.
- Economical choice for low-corrosion environments
- Prevents wear of connectors: the thickness of the hanger and the rounded edges of the connection hole limit wear of connectors
- Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
Easy clipping:
- The wide, ergonomic connection hole facilitates carabiner clipping
- The width of the hole allows installation of two carabiners at the same time
Specifications:
- Available in two bolt sizes (10 or 12 mm)

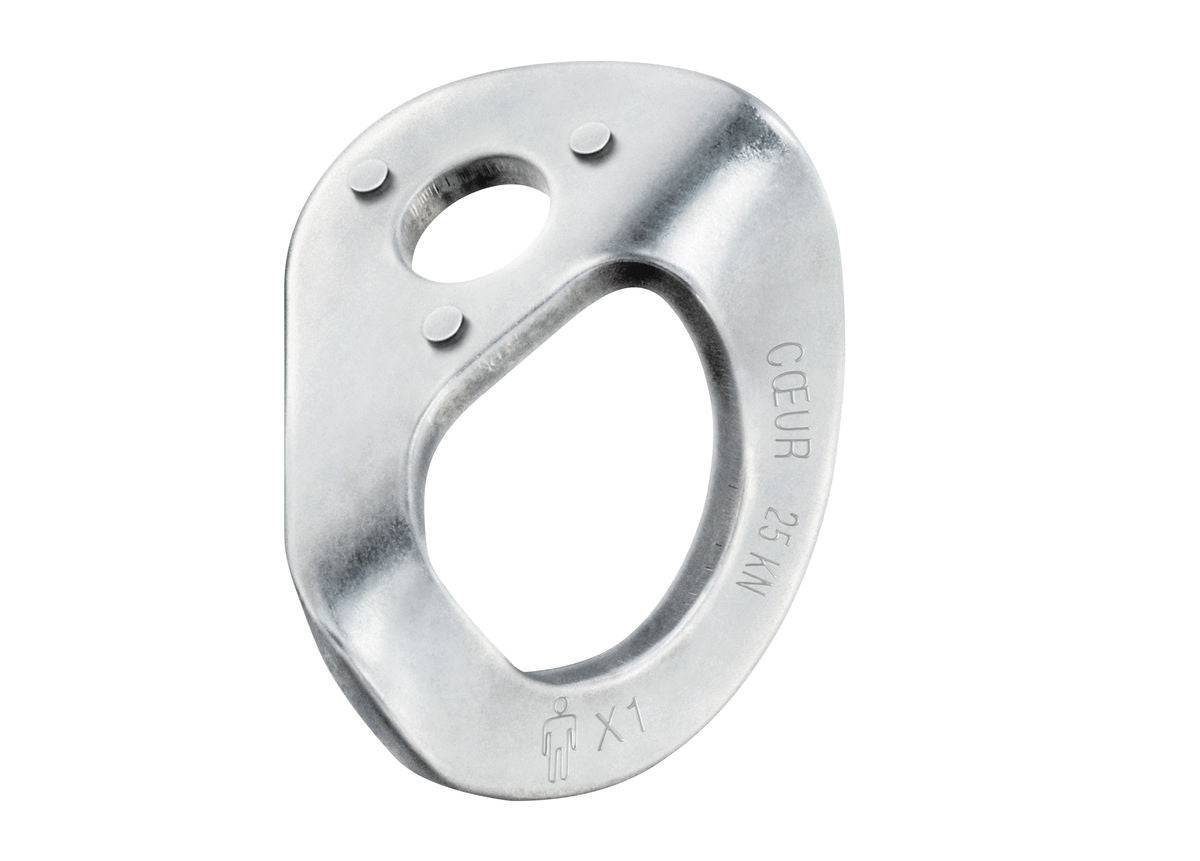

- COEUR STEEL hangers, available separately:
– For 10 mm diameter bolt (P36AA 10)
– For 12 mm diameter bolt (P36AA 12) - Material(s): Steel
Technical Information:
| Diameter | 10 mm | 12 mm |
| Certification(s) | – | EN 959 |
| Weight | 110 g | 135 g |
| Drilling depth | 8.5 cm | 9.5 cm |
| Drilling diameter | 10 mm | 12 mm |
| Resistance to cutting on concrete 50 MPa | 23 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
