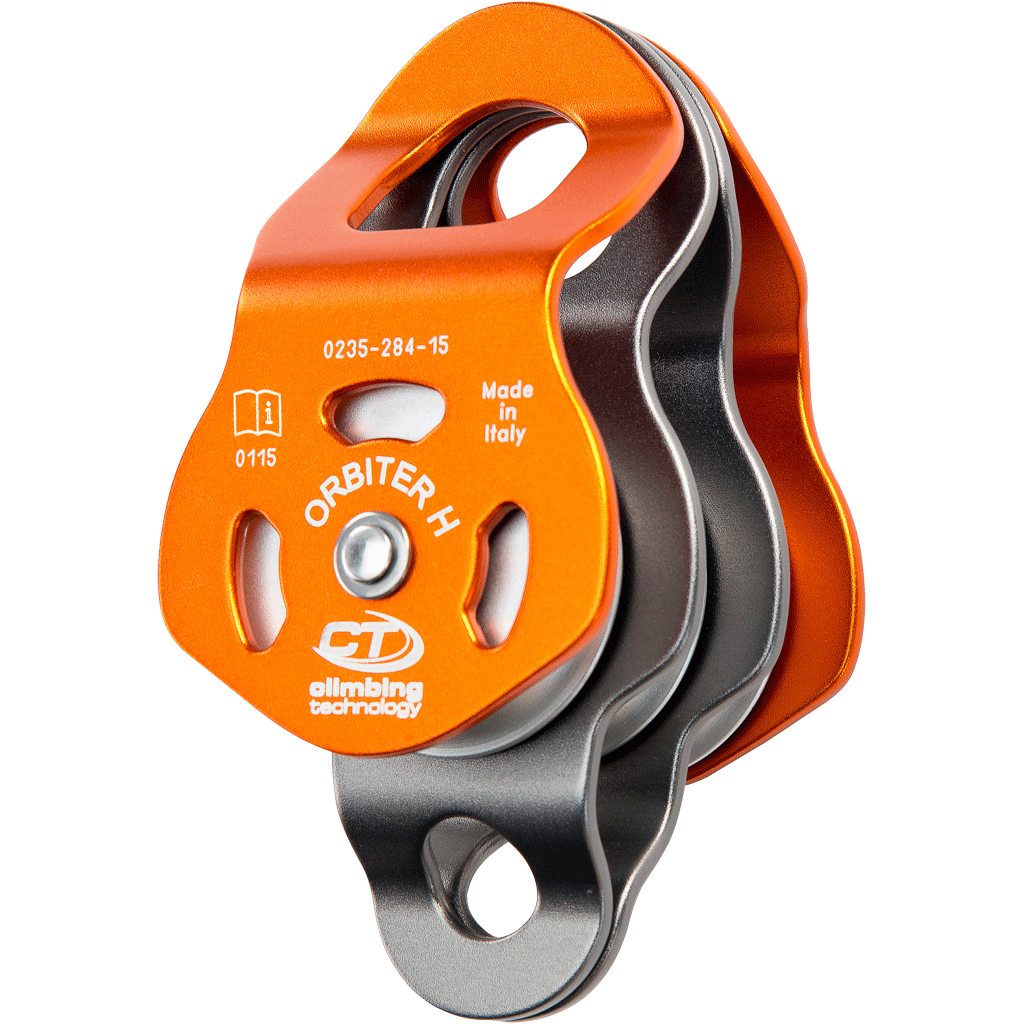

Climbing Technology ORBITER H Triple Pulley, 2P667 – New Model UK

Description

Triple pulley with mobile side plates, very versatile and robust.

Main Features

• It allow the insertion of two connectors in the upper eyelet and it is mounted on ball bearings
• The light-alloy flanges extend beyond the pulley wheels to minimise rope wear
• Ideal for constructing rescue winches with 6x reduction factor or in multiple pulley systems where a larger lifting force is required
• Additional attachment point suitable for a single connector

Specifications:

• Weight: 465 g
• Size: 70 x 139 x 78 mm
• Breaking Load: 45 – 7.5 kN
• Work Load Limit: 12 – 2 kN
• Efficiency: 96%
• Diameter Rope: ≤ 13 mm
• Standards: EN 12278:2007, CE 0333, UIAA
